Evaluation Factor - Product Temperature Exposure

This is being implemented to provide a more accurate lane risk assessment by evaluating the residual risk on the product temperature after applying certain packaging.

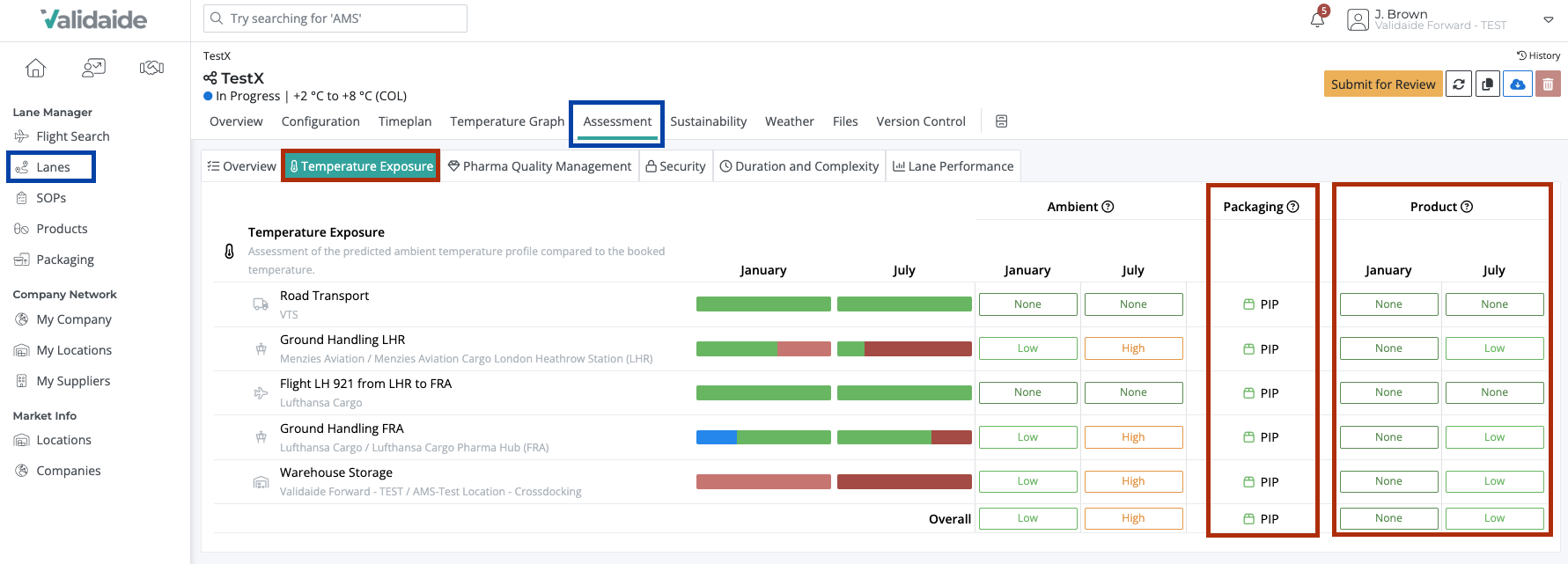

Ambient Temperature Exposure provides an assessment of the difference between the Predicted Temperature outside the pallet and the Booked Temperature Range. In the lane "Assessment" tab when selecting the subsection "Temperature Exposure" you can find two new columns. The additional columns are ‘Packaging’ and ‘Product’. For each step of the lane, we calculate the final product exposure, which is the remaining risk after having applied packaging to ambient temperature exposure.

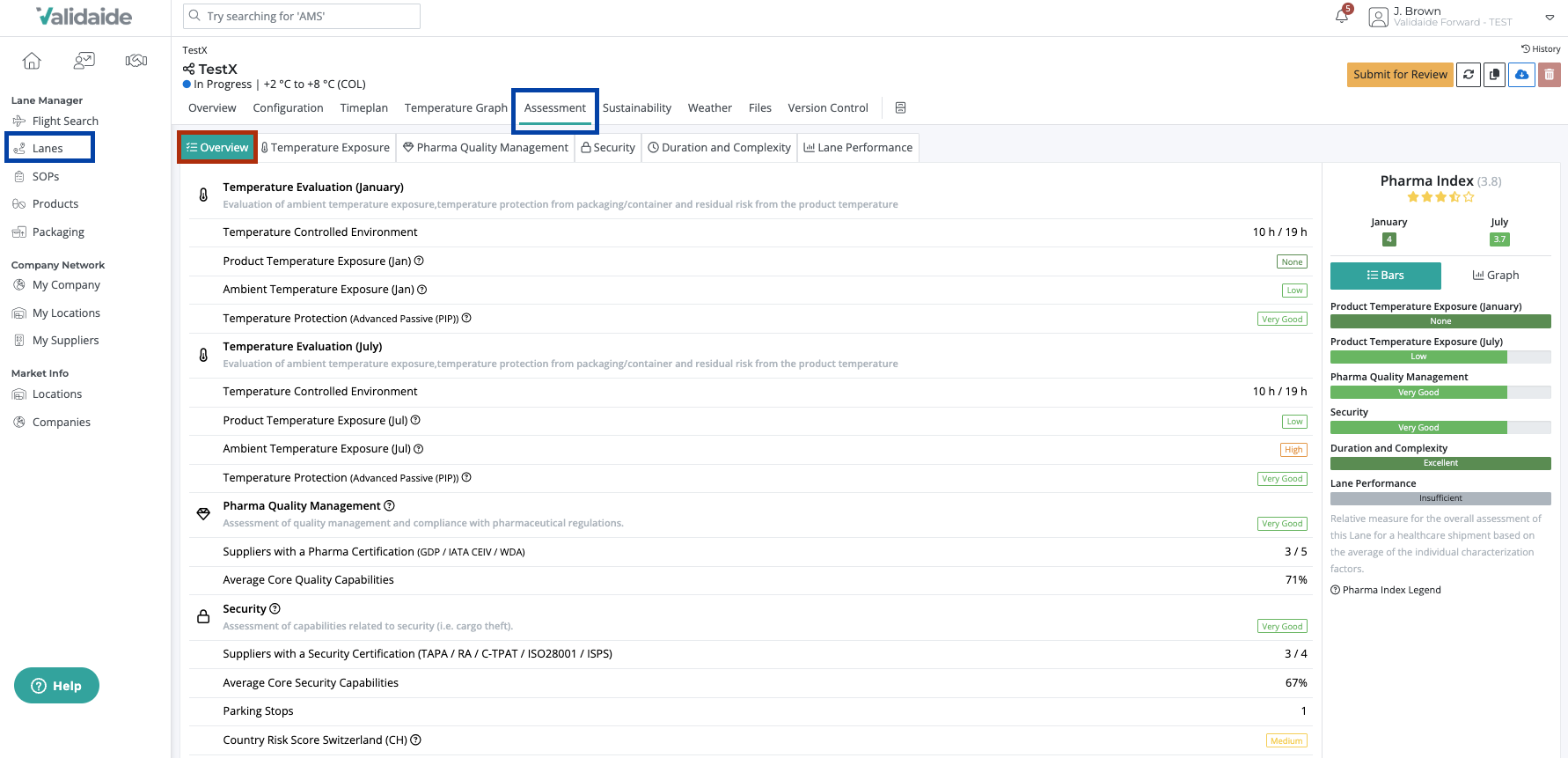

This algorithm change is also visible in the "Assessment – Overview tab". We calculate values for product temperature exposure for January and July, which will show the residual risk on the product after applying the mitigation of the packaging on the predicted ambient temperature exposure.

The ‘Pharma Index’ will contain only this new "Product Temperature Exposure" and will no longer show Ambient Temperature Exposure and Packaging separately.

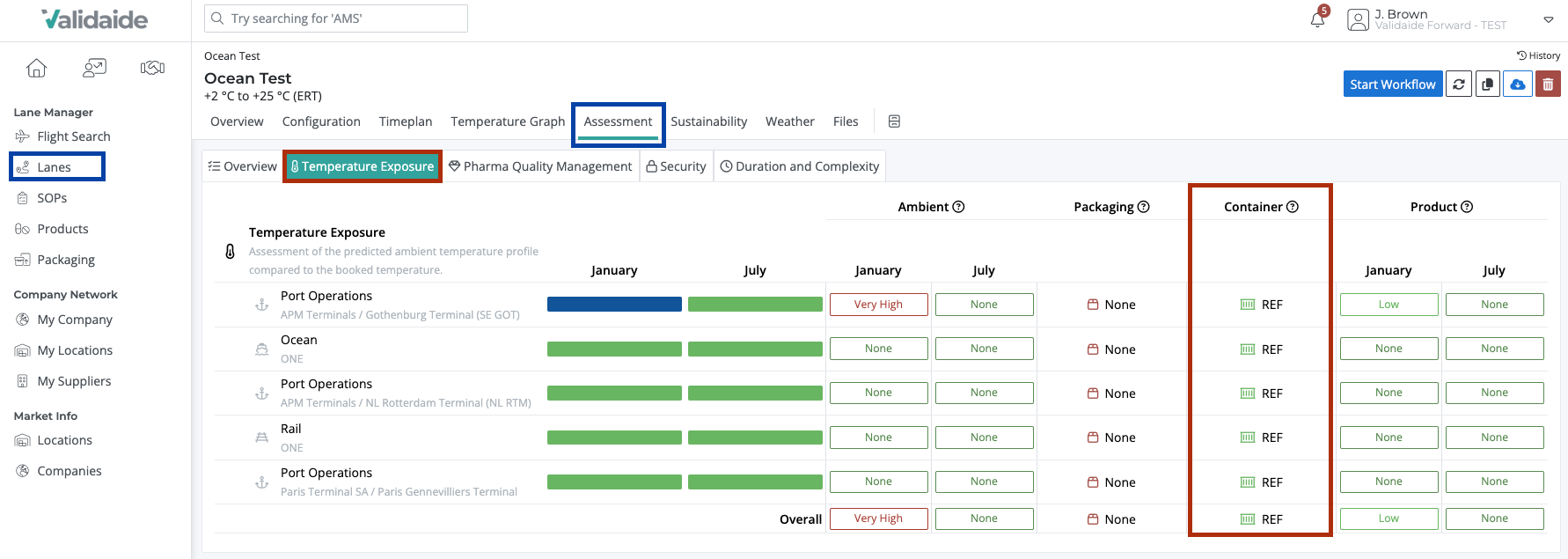

In an ocean lane assessment temperature exposure, a container type is clearly indicated as shown in the visual below.

When selecting a reefer as a container type for the ocean, the protection is excellent (see below). The calculation of product temperature exposure is based on the container type instead of the packaging type.

Ambient Temperature Exposure.

Temperature Protection.
